Cloud Virtual Circuit

Get Started

One-on-One Virtual Circuit Service between Samsung Cloud Platform Regions and Global Regions

Cloud Virtual Circuit is a circuit bandwidth-based virtual circuit service that provides one-on-one communication between Samsung Cloud Platform's global regions and customer sites.

Overview

  • One-on-One Connection in Mesh Form

    Samsung Cloud Platform's infrastructure between all global regions is connected, enabling one-on-one virtual circuit service anywhere from the origin to the destination.

  • Short-Term Uncontracted Service

    When a short-term circuit service is required, you can choose a regular fee without a contract, which makes it more cost-effective than other network circuit services.

  • Specialized Feature

    It provides a specialized feature that can be used by dividing one virtual circuit into several logical circuits of different purpose.

01

04

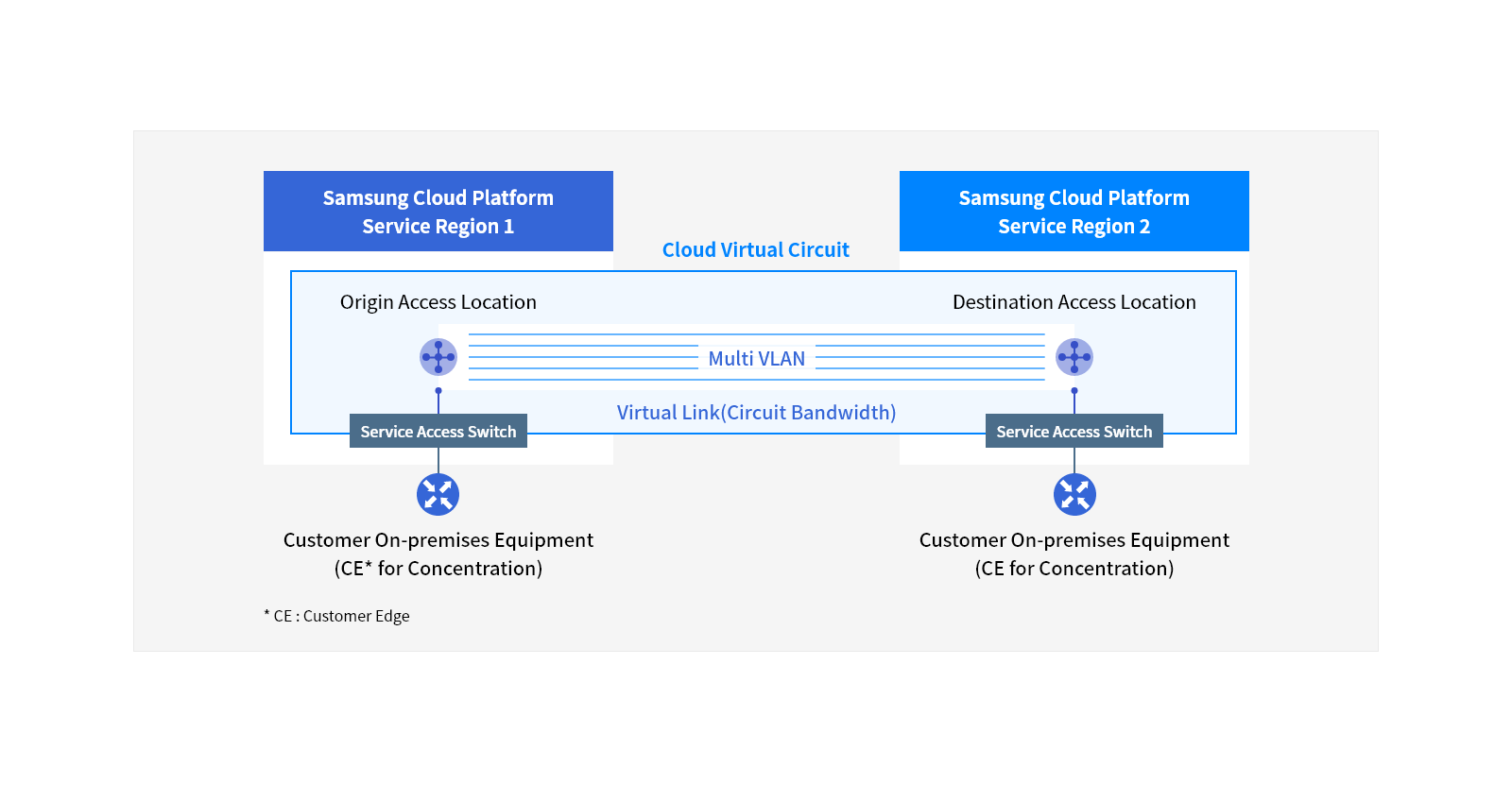

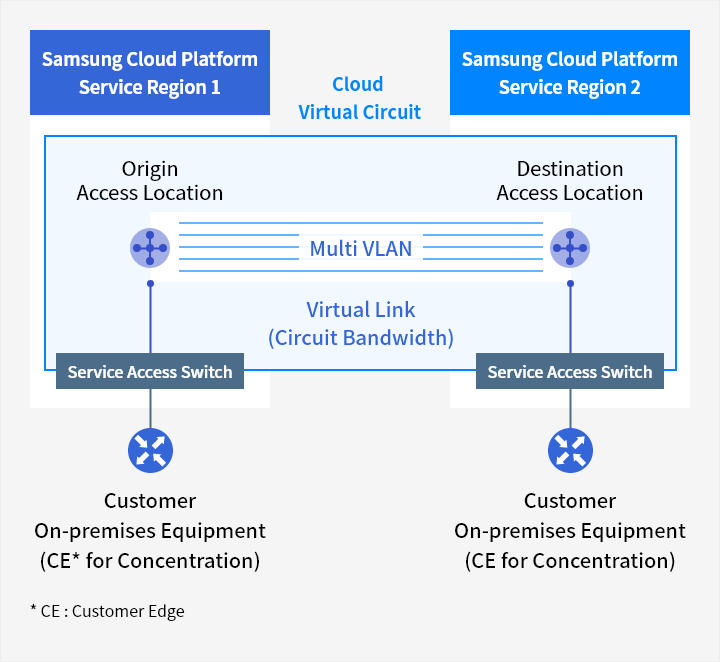

Service Architecture

Samsung Cloud Platform Service Region 1
Origin Access Location: Service Access Switch - Customer On-premises Equipment (CE* for Concentration)
→ Cloud Virtual Circuit [Origin Access Location → Muti VLAN Destination Access Location
Service Access Switch → Virtual Link(Circuit Bandwidth) → Service Access Switch ] →Samsung Cloud Platform Service Region 2
Destination Access Location : Service Access Switch - Customer On-premises Equipment (CE for Concentration)
* CE : Customer Edge

Key Features

  • Serviced regions
    1. Korea : Suwon, Sangam, Chuncheon, Gumi and Nonhyeon
    2. Global : New Jersey, San Jose, Sao Paulo, London, Frankfurt, Hong Kong, Singapore, Delhi, Dubai and Tokyo
  • One-on-one virtual circuit service between global regions(L2VPN based)
    1. Origin and destination access locations can be selected from any service region
    2. One Cloud Virtual Circuit configures up to two virtual links for redundancy
    3. Provided circuit bandwidth : 10, 20, 50, 100, 200, 300, 400, 500, 600, 700, 800, 900 Mbps 1, 2, 3, 4, 5, 6, 7, 8, 9, 10 Gbps
      ※ The maximum circuit bandwidth in Korea is 10Gbps, and between Korea-Global and Global-Global is 1Gbps.
  • Logical circuits separation(multi VLAN)
    1. Up to five separate VLANs can be used with one Cloud Virtual Circuit
