The First Step to Smart Textual Analysis, KoreALBERT

The First Step to Smart Textual Analysis, KoreALBERT

Technology Toolkit 2021 is a technical white paper describing core technologies that are being researched and developed by Samsung SDS R&D Center. We would like to introduce in this paper a total of seven technologies concerning AI, Blockchain, Cloud, and Security with details on their technical definition, key features, differentiating points, and use cases to give our readers some insights into our work.

Text Analysis using Korean Pre-trained BERT Model

Korean language model and related technologies

Download the report

1. Introduction to Technology

Technology Trends and Background

① Limitations of Statistical Language Models in Linguistic Representation

Language is the process of communicating intentions or meanings. Sentences have certain meanings, and humans communicate through understanding and deciphering words in the sentence. Then how are we supposed to reflect this process in deep learning models? Deep learning models are expressed in real number value computation, so it involves the process of converting words into real number values. Previous deep learning models simply substitute words into pre-defined real number values. But there is a downside to this approach since such model is unable to handle linguistic ambiguities like homonyms properly. Take phrases like “Bank Account” and “River Bank” for example. Although the two phrases contain the same word, they have very different meaning. Previously available deep learning models could not convey this difference because they use the same real number value for the word “bank” as shown in [Figure 1]. Therefore, it was necessary to develop a new model that can capture contextual information.

Homonyms
  • Bank
  • Bank Account
  • Different Meaning
  • River Bank
Limitations of Statistical Language Model
  • Bank: Converts words into real number values
  • Deep Learning
  • Bank Account
  • 0.2 0.8 1.2 0.6
  • Representing the same word
  • 0.2 0.8 1.2 0.6
  • River Bank

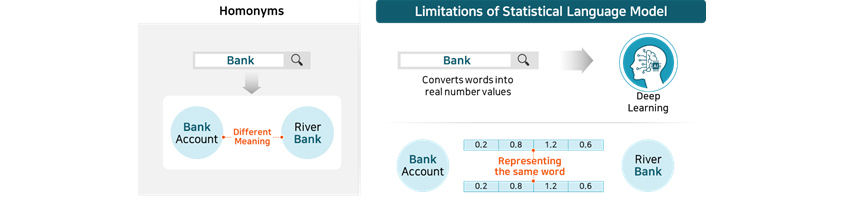

[Figure 1] Limitations of Statistical Language Models

② Limitations in building datasets for DL language model training

Training a deep learning language model requires a massive amount of data although varied according to the size of the model. Building a dataset for supervised learning in particular requires answers (label) which often entails significant time and costs. So creating datasets for large-sized models with tens of millions of sentences and associated labels becomes an extremely challenging task by itself.

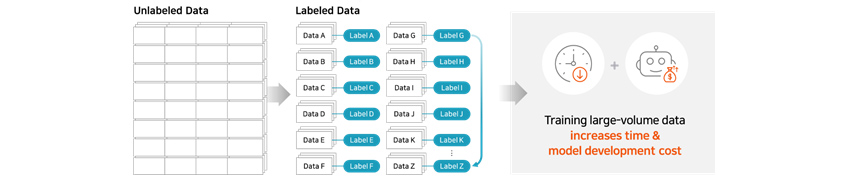

Unlabeled DataLabeled Data
  • Data A: Label A
  • Data B: Label B
  • Data C: Label C
  • Data D: Label D
  • Data E: Label E
  • Data F: Label F
  • Data G: Label G
  • Data H: Label H
  • Data I: Label I
  • Data J: Label J
  • Data K: Label K
  • Data Z: Label Z
Training large-volume data increases time & model development cost
[Figure 2] Limitations in building datasets for DL language model training

③ Introduction to pre-trained models

First introduced by Google in 2018, BERT (Bidirectional Encoder Representation from Transformers) is a deep learning language model pre-trained with large amount of English datasets, and it is developed to tackle the limitations of statistical language models mentioned above. BERT presented state-of-the-art (SOTA) results in a wide variety of NLP benchmarks such as General Language Understanding Evaluation (GLUE) and machine learning comprehension (SQuAD v1.1, SQuAD v2.0), outperforming previous statistical language models that were available at that time. Various other similar language models were presented afterwards. Since most of them work in a similar way to BERT, let’s take a look at BERT more closely and find out how the above-mentioned drawbacks were addressed.

④ Contextual representations

BERT uses two training strategies to learn the context of a word. Learning contextual relations between words or sentences allows the model to provide more accurate representations of a language.

• Masked Language Model (MLM)
Masked Language Modeling (MLM) is one way to train a language model. Here, certain words of a sentence are masked out at random, and the model learns the language by guessing the masked words. The model is trained to predict and find correct answers through contexts surrounding the masked words. This allows the model to naturally catch different meanings of a word based on its relationship with surrounding words.

Fill in the blank
  • AI will mankind
  • 1) Save 2) Dominate 3) Love N)…

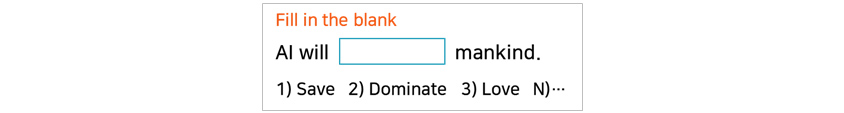

[Figure 3] MLM Training Sample

• Next Sentence Prediction (NSP)
In the Next Sentence Prediction (NSP) model, the model is given a pair of sentences as input and learns to predict whether one sentence is the subsequent of the other. This way, the model can figure out the context of sentences.

Find connection between sentences
  • 1. This article is boring. It puts me to sleep.
  • 2. This article is boring. I am suddenly awaken.

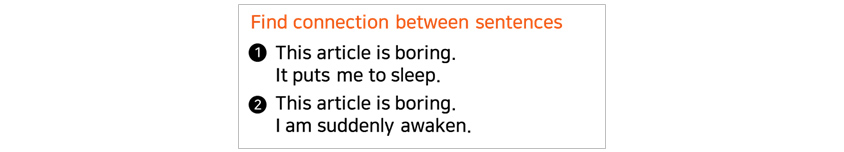

[Figure 4] NSP Training Sample

⑤ Overcoming drawbacks of self-supervised learning

There are a wide variety of text analysis tasks (or features) that are based on deep learning language models. These tasks can be used to predict sentiment of a sentence, provide answers to a question, or find similar sentences. Acquiring data and training models for each one of these tasks separately would require a tremendous amount of data. But although each task may be different from one another, they all still use the same language and therefore need the same language understanding. BERT models are pre-trained through various tasks like MLM or NSP and learn the basic language skills. For the MLM task, texts for datasets are taken from Wikipedia, with some percentage of the sentences masked out. In the NSP tasks, training datasets are generated by combining a pair of connected sentences with another pair of sentences from other documents. That way, the model can learn a language representation by itself without having humans provide labeled data. An unsupervised learning method where a model learns autonomously with unlabeled data input is called “self-supervised learning,” and a language model built this way is referred as “pre-trained language model.”

⑥ Fine-tuning based on transfer learning

Transfer learning is a machine learning technique where a pre-trained model on one task is re-trained for a new purpose-specific task. Fine-tuning refers to this specific stage of the learning process in which a pre-trained model is refined for specific task. The fine-tuning process is necessary because a pre-trained BERT model itself is not trained yet to perform a specific task. Let’s find out what kind of tasks can be performed with a fine-tuned model in the use cases below.

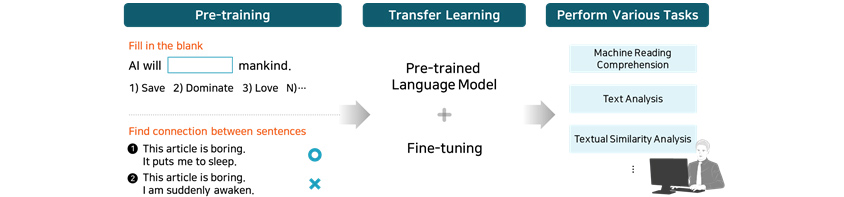

Pre-training
  • Fill in the blank
  • AI will mankind.
  • 1) Save 2) Dominate 3) Love N)…
  • Find connection between sentences
  • 1. This article is boring. It puts me to sleep.
  • 2. This article is boring. I am suddenly awaken.
Transfer Learning
  • Pre-trained Language Model + Fine-tuning
Perform Various Tasks
  • Machine Reading Comprehension
  • Text Analysis
  • Textual Similarity Analysis
[Figure 5] Transfer learning process with a pre-trained model

2. Key Features

Korean Pre-trained Models

There are many publicly available pre-trained BERT models for English but it is difficult to utilize them for Korean due to linguistic differences. Samsung SDS R&D Center gathered a massive volume of Korean text data and created pre-trained models specifically built for Korean language.

① KoreALBERT

The first model is KoreALBERT (Korea + ALBERT) [Figure 6], which learns Korean using ALBERT (A Lite BERT) architecture, a lite version of BERT. To increase the usability of the model in various business settings, datasets were made of formal Korean texts taken from a wide variety of sources including Wikipedia, news and book outlines. In addition, we applied a new light-weight architecture and patented training methodology to obtain a competitive edge over other previously available Korean language models (3. Differentiating Points).

② KoELECTRA

Introduced after BERT, ELECTRA is a language model created to address the inefficiency of BERT model which uses only 15% of masked tokens for training. In contrast with BERT, ELECTRA utilizes the rest 85% of the input tokens as well, improving the training speed and performance compared to BERT. KoreELECTRA is a model trained on Korean texts with ELECTRA model architecture. Although heavier, KoreELECTRA achieves better performance compared to KoreALBERT.

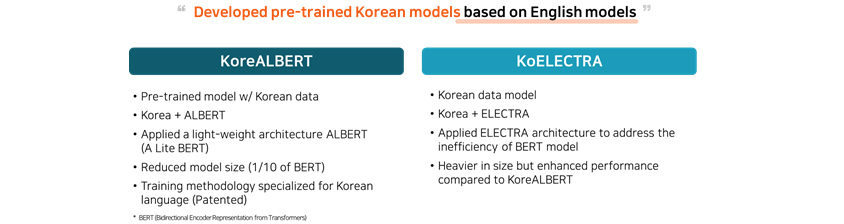

Developed pre-trained Korean models based on English modelsKoreALBERT
  • Pre-trained model w/ Korean data
  • Korea + ALBERT
  • Applied a light-weight architecture ALBERT(A Lite BERT)
  • Reduced model size(1/10 of BERT)
  • Training methodology specialized for Korean language (Patented)
KoELECTRA
  • Korean data model
  • Korea + ELECTRA
  • Applied ELECTRA architecture to address the inefficiency of BERT model
  • Heavier in size but enhanced performance compared to KoreALBERT
[Figure 6] Development of Korean Pre-trained Models

Using Pre-trained Model for a Wide Variety of Tasks

A pre-training model cannot perform a specific task in itself, but it can be used a wide range of tasks after fine-tuning. NLP (Natural Language Processing) can be largely divided into two groups: NLU (Natural Language Understanding) and NLG (Natural Language Generation). NLU helps the comprehension of the text inputs and contexts, and NLG is responsible for generating sentences based on the understanding of the context. So if you want to build a chatbot, you need both NLU for understanding user’s intent and NLG for generating responses.

① NLU

Pre-training model is used for almost all of NLU tasks. Various NLU tasks including machine reading comprehension, text classification and textual similarity analysis can be performed after fine tuning of a pre-trained model.

② NLG

NLG model is mounted with a decoder module for generating sentences, which doubles the cost of pre-training compared to NLU models. But some of the recent studies have suggested ways to reduce NLG model pre-training costs using NLU models.

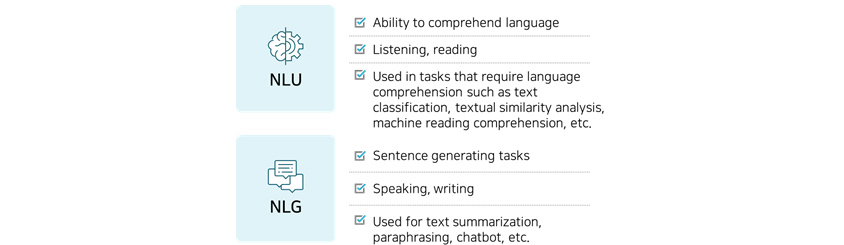

NLU
  • Ability to comprehend language
  • Listening, reading
  • Used in tasks that require language comprehension such as text classification, textual similarity analysis, machine reading comprehension, etc.
NLG
  • Sentence generating tasks
  • Speaking, writing
  • Used for text summarization, paraphrasing, chatbot, etc.
[Figure 7] Usage of pre-trained models

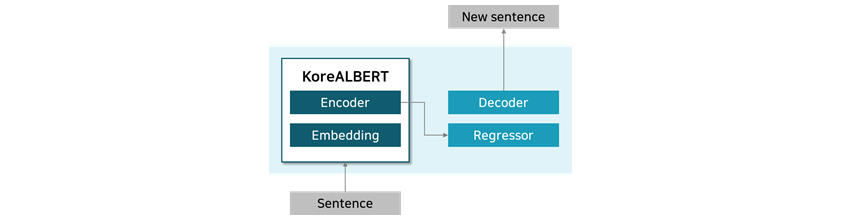

  • Sentence
  • KoreALBERT: Encoder, Embedding
  • Decoder, Regressor
  • New sentence
[Figure 8] NLG model architecture with KoreALBERT

3. Differentiating Points

Improved Pre-training Methods

Samsung SDS adopted new training techniques to reduce model size while improving the accuracy of pre-trained models that serve as the core engine for textual analysis. A new step was added [Figure 9] to the training process for enhanced efficiency. In this stage, the model learns to predict the sequence of randomly shuffled words, which not only significantly reduces parameter size (1/10 size of BERT parameter) but also increases the model accuracy. Samsung SDS team patented this training technique and presented the result of the study at one of the top-tier global conferences, ICPR 2020. The upgraded KoreALBERT model has a use case for ERP-related VoC analysis system which is being operated in CPU-based server (4. Use Cases).

Masking
  • I have a question(masked) on corporate credit card
Re-ordering
  • Re-ordered / Re-ordered
  • KoreALBERT
Denoising
  • Loss(Total) = Loss(Masked) + Loss(Word Order) + Loss(Sentence Order)

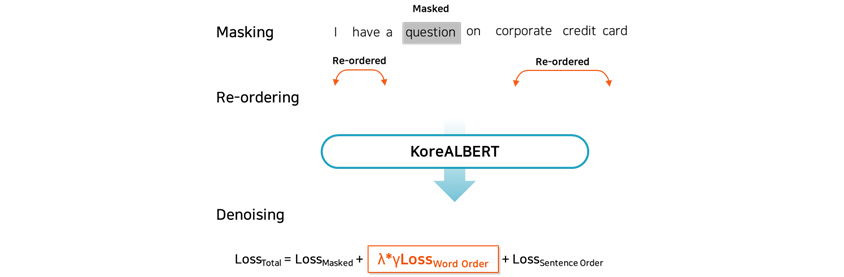

[Figure 9] KoreALBERTmodel training method(Source: http://arxiv.org/abs/2101.11363(partially modified)

In addition, Samsung SDS developed multi-lingual BERT model that can be used for various languages by employing transfer learning and CNN (convolutional neural network) architecture. The model proved its superior performance ranking top in the official leaderboard of a Korean MRC dataset, KorQuAD v1.0 (Korean Question Answering Dataset) in August 2020.

Comparative Analysis of Pre-trained Models

[Figure 10] below displays the size and performance of different pre-trained models applicable in Korean language comprehension tasks. With an improved pre-training method, KoreALBERT showed enhanced average scores at various Korean language understanding tasks* with a much smaller parameter size, 7-20% level compared to other models. (*Evaluated tasks: machine reading comprehension, semantic textual analysis, named entity recognition, intent classification, question classification, sentiment analysis)

Facebook XLM-R
  • Model Size (Parameters): 100
  • Korean Comprehension Task Average Score: 86.4
Google mBERT
  • Model Size (Parameters): 64
  • Korean Comprehension Task Average Score: 83.3
S KoBERT
  • Model Size (Parameters): 34
  • Korean Comprehension Task Average Score: 85.2
Samsung SDS KoreALBERT
  • Model Size (Parameters): 7
  • Korean Comprehension Task Average Score: 87.5

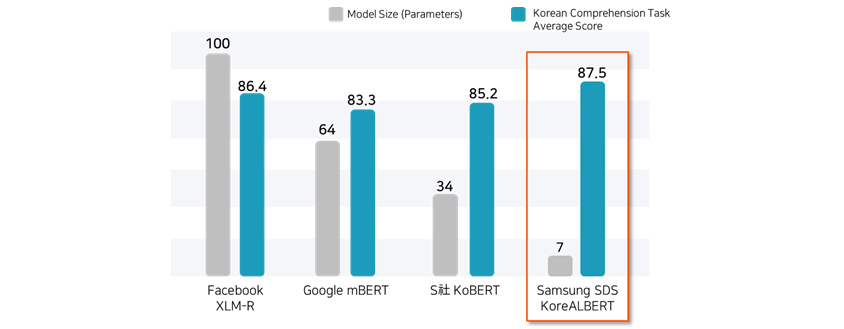

[Figure 10] Size and performance of different pre-trained models on Korean comprehension tasks

4. Use Cases

Case 1: Machine Reading Comprehension (MRC)

Machine Reading Comprehension task can be used for understanding text passages and answering relevant questions. As displayed in [Figure 11], a pre-trained model was used as a baseline model, and enhanced CNN was added to augment the MRC model’s performance. Our MRC model showed a strong performance in KorQaAD 1.0.

Example: Machine Reading Comprehension
  • Label, Regressor, Enhanced CNN, KoreALBERT, Passages & Questions
Passage
  • Samsung SDS NLU Model Tops Korean MRC Competitions
  • As many tech companies are racing to develop AI that can understand and converse in complex human language, Samsung SDS won the first place in Korean AI machine reading comprehension (MRC) competition with its AI-based Natural Language Understanding (NLU) model.
  • KorQuad is a Korean language model testing tool developed and released by LG CNS. It is comprised of dataset with over 100,000 question-and-answer sets compiled from more than 40,000 Korean Wikipedia entries.
Question
  • How did Samsung SDS AI NLU model rank in MRC contest?
Answer
  • No. 1

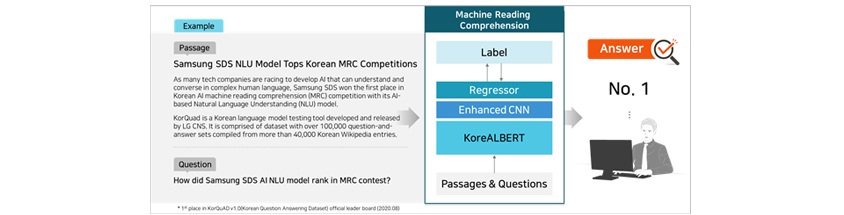

[Figure 11] Question and answering with KoreALBERT

Case 2: Text Classification

Text classification task is used for categorizing texts into organized groups. One area where it can be used is sentiment classification for determining whether the sentiment of given text input is positive or negative. Often used for analyzing user comments or feedback on products, text classification task can be also used for intent classification, as shown in [Figure 12]. Using the text classification task, any kind of text can be efficiently organized and categorized into groups so it is one of the most frequently used tasks in business settings. Performance of a text classification model may vary depending on the pre-trained model (KoreALBERT).

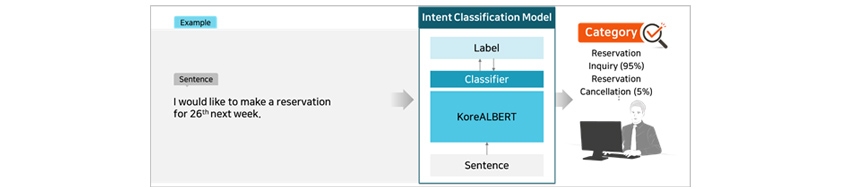

Example: Intent Classification Model
  • Label, Claasfier, KoreALBERT, Sentence
Sentence
  • I would like to make a reservation for 26th next week.
Category
  • Reservation Inquiry (95%), Reservation Cancellation (5%)
[Figure 12] Intent analysis using KoreALBERT

Case 3: Semantic Textual Similarity (STS)

Semantic Textual Similarity deals with determining how similar two sentences are in terms of meaning or context. STS can be useful in implementing a search feature for finding similar sentences to a query sentence and a saved sentence. Samsung SDS’s STS task takes sentiment and context into consideration, therefore boasts a powerful performance and quality compared to other previously available keyword search features [Figure 13 – Upper].

As the number of query sentences increases, so does the processing time. To address this issue, Samsung SDS suggested a new architecture that utilizes Siamese Neural Network and Convolutional Neural Network (CNN) [Figure 13 – Lower]. The result of this study was patented and presented at a renowned international symposium on artificial intelligence, ICPR 2020.

Example: Technical Difference
  • CNN Pooling Layer
  • Feature values are magnified considering CNN filter takes maximum value in sliding areas.
Label(-1~1), Cosine Similarity
  • Vector 1, CNN Pooling, KoreALBERT, Sentence 1
  • Vector 2, CNN Pooling, KoreALBERT, Sentence 2

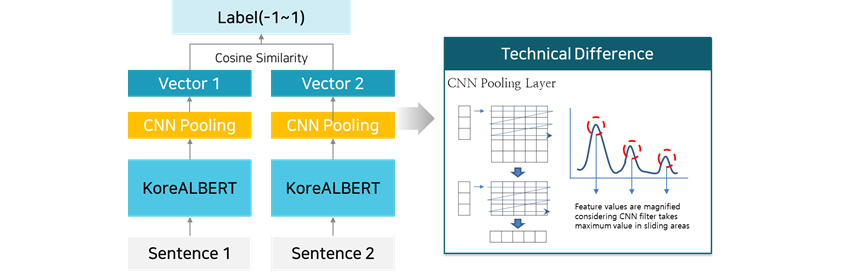

[Figure 13] Textual similarity analysis using KoreALBERT (Upper), Enhanced STS analysis model architecture (Lower)

Case 4: Text Summarization

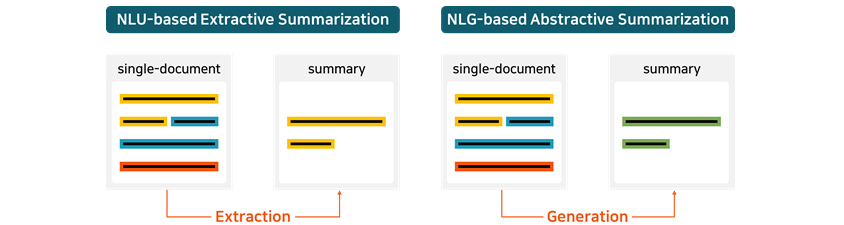

As shown in [Figure 14], text summarization model is divided into two types: extractive summarization model that generates a summary by extracting key sentences from the document passage, and abstractive summarization model which comprehends the details of a document and generates sentences with context. Extractive summarization model can be built based on NLU, and abstractive summarization model on NLG engine. Textual summarization feature can save a lot of time and costs for analytics experts who need to obtain insights from a massive volume of documents.

NLU-based Extractive Summarization
  • single-document, Extraction, summary
NLG-based Abstractive Summarization
  • single-document, Generation, summary
[Figure 14] Text summarization using language models

5. Business Cases

Below is one of the use cases of language models for VoC (Voice of Customer) management.

Company A’s ERP system related VoC management process.
(1)System user submits ERP system inquiries.
(2)Service desk assigns the case to the person in charge.
(3)Relevant staff in charge verifies the inquiry type, and re-assigns the case if necessary.

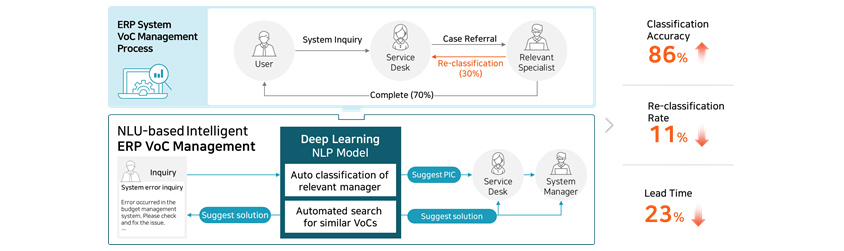

ERP System VoC Management Process
  • User: System Inquiry
  • Service Desk: Case Referral
  • Relevant Specialist: Re-classification(30%), Complete(70%)
NLU-based Intelligent ERP VoC Management
  • Inquiry(System error inquiry): Error occurred in the budget management system. Please check and fix the issue.
  • Suggest solution
  • Deep Learning NLP Model: Auto classification of relevant manager, Automated search for similar VoCs
  • Suggest PIC
  • Suggest solution
  • Service Desk
  • System Manager
  • Classification Accuracy 86%
  • Re-classification Rate 11%
  • Lead Time 23%
[Figure 15] VoCmanagement process

In the previous VoC management system, re-classification rate was as high as 30% due to misclassification, which also delayed overall lead time. Samsung SDS R&D center was able to address this issue by applying two DL-based models to the system: automatic relevant manager classification model and automatic similar VoC search model. Adoption of the two new models increased the classification accuracy to 86%, reduced re-classification rate down to 11% and lead time to 23%.

6. Closing

The number of business cases of pre-trained language model is growing with the extended application of the models in wider area. Samsung SDS will continue to introduce more powerful and effective pre-trained models that could potentially be applied in various tasks (4. Use Cases), while creating values for customer through insights gained from various textual information and analysis.
