Nexplant 3D eXcellence

A collaboration platform facilitates 3D data use on site

With just a web browser anywhere in the world, you can use 3D data that is used in production, construction, and operation sites quickly and safely without worrying about security.

We know that it has been difficult to use 3D data due to various reasons, such as large size of data, high level of security requirements, need for special SW tools.
Nexplant 3D excellence converts, integrates and visualizes 3D data of various format that has been generated in the design stage, and offers a safe, lightweight environment for the 3D data to be used on production, construction and operation sites.

Videos

A variety of services linked to the utilization of heterogeneous 3D data through platforms can revolutionize your business and collaborative environment.

Features

Now is the time to flexibly take advantage of the 3D design data across all work scopes.

Not only are 30 heterogeneous CAD formats in the manufacturing and AEC sector supported but large size of 3D data are visualized via high-fidelity, ultra-lightweight streaming to be used in web or mobile environments.

As 3D data generated at the R&D and design phase are usable for a wide range of services, such as procurement, manufacturing, A/S, construction, operation and etc., not only manufacturing time but also construction costs can be saved.

Support to connect 3D design data with business data (ERP and/or SCM), and combine 3D data with IoT data to build a Digital Twin of the company.

Easy and fast in various environments, All it takes is a web browser

Hold design meetings and work efficiently together by using 3D
in a web environment that ensures data security.

With secure web streaming, there is no need to transfer the original data as 3D data is shared among parties inside and outside of the company to work in cooperation.

With no additional SW installation required, real-time web-based conferences are held for multi-parties to exchange reviews, check models, share markups and comments.

Issues and drawing version management features are also provided. In addition, voice recordings are transcribed to text and meeting minutes are written, based on the comments.

With secure web streaming Safety ensured without downloads

The platform-based data API service enables fast and easy
linkage to legacy systems and expansion of functionalities.

Based on the data set that comprises the 3D excellence system, the entire service is integrated, enabling the user to link legacy data according to needs as well as user customization.

Using an open API, you can easily implement a custom application system that utilizes your legacy data.

Given the flexibility of expansion & linkage Open architecture

If you want to know more, please consult with an expert directly.

Talk to an expert

Case Studies

Global Constructor A

With just a web browser anywhere in the world, you can use 3D data in production, construction, and operation sites quickly and safely without worrying about security.

Use cases

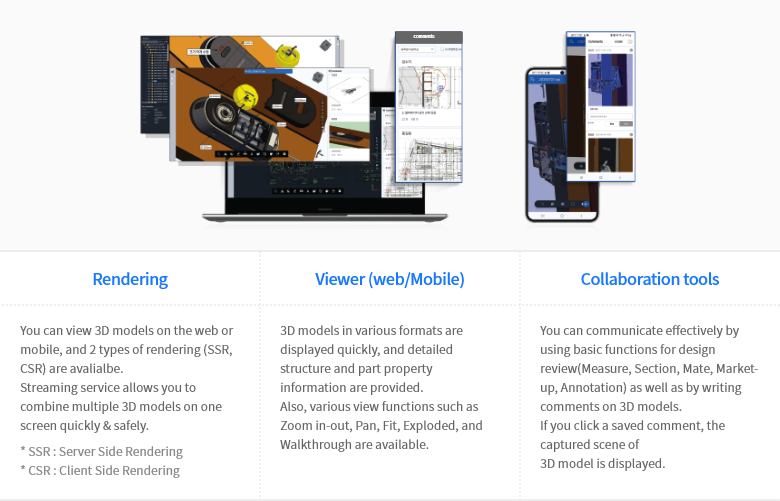

Web visualizer, enabling flexible use of 3D data

Large 3D data in various formats can be immediately visualized via high-fidelity, ultra-lightweight streaming to be used flexibly in mobile environments.

Download

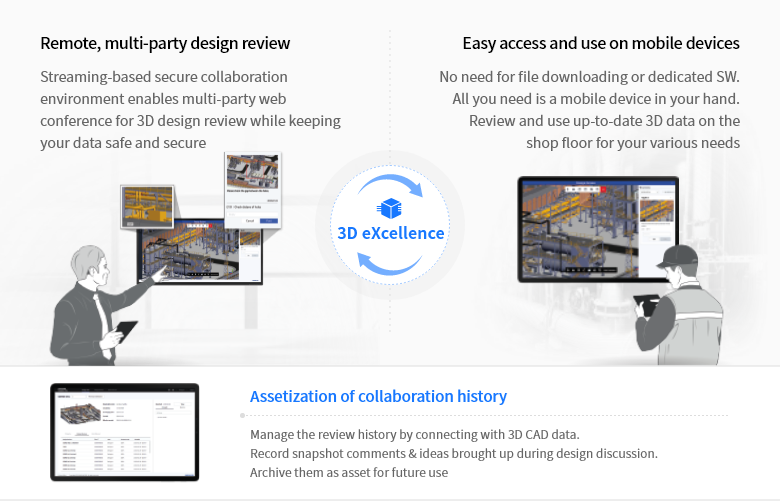

Web-based real-time design meetings

Over 30 heterogeneous CAD formats in the manufacturing and AEC sector are supported,
and 3D data can be easily used in web and mobile environments.

Download

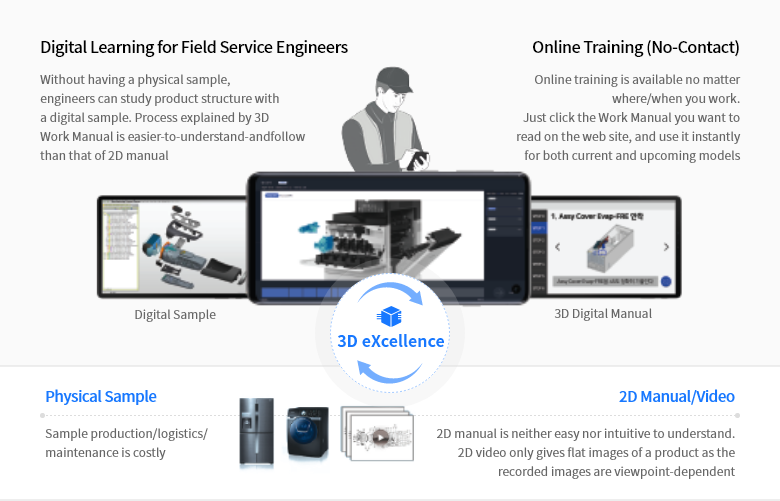

Digital manual that can be utilized in various ways.

With just a web browser, fast and easy use of 3D data in various environments (e.g., production assembly line monitor, mobile device of on-site worker, and etc.) is enabled

Download

Find more details on Nexplant 3D excellence

Guideline

Resources

Find out the cases of Nexplant 3D eXcellence.

Learn more

Manual

You can learn how to use the Nexplant 3D eXcellence

Learn more

Specifications

Platform

Windows, Linux, Unix

Database

PostgreSQL 9.4 +

WAS

Standard Servlet Container (Weblogic, Tomcat, etc.)

Web

NGINX, Apache

SW requirement

JAVA 1.8 +

FAQ

If you need detailed price information, please send a request to 'Service Inquiry' or send to the representative email below to receive a detailed quotation.
- email: nexplant3d@samsung.com
The recommended specifications are as follows.
- Server(WEB/WAS) : 4Core, 8GB(Memory), 100G(Storage), RHEL 7.x or higher *2 (Orchestrator)
- Server(DB) : 4Core, 32GB(Memory), 200G(Storage), RHEL7.x or higher *2 (Orchestrator)
- Client : NVIDIA Geforce GTX/NVIDIA GRID GPUs, Windows 10 or higher, Chrome(Browser)
There is no need to install the authoring SW locally. If you are a user with digital manual authoring rights, you can create a digital manual in the web environment (Chrome browser).
Installation/operation in the cloud environment is possible.
For more information on infrastructure and operation services, please contact us using the contact information below.
- Customer Support Portal: https://support.samsungsds.com
- email: nexplant3d@samsung.com

There are more than 30 CAD formats available in 3D eXcellence (30 types of 'Read Format' and more than 10 types of 'Write Format').
The detailed list of supported formats is as follows.
※ CAD import & export: Utilize HOOPS EXCHANGE

available Format, Version, Extensions
Format	Version	Extensions
3MF	1.2.3	3MF
ACIS	Up to 2021	SAT, SAB
Autodesk 3DS	Any	3DS
Autodesk DWF	Any	DWF, DWFX
Autodest Inventor	Up to 2023	IPT, IAM
Autodest Navisworks	From 2012 to 2022	NWD
Catia V4	Up to 4.2.5	MODEL, SESSION, DLV, EXP
Catia V5	Up to V5_6R2022	CATDrawing, CATPart, CATProduct, CATShape, CGR
Catia V6 / 3DExperience	Up to V5-6 R2019 (R29)	3DXML
COLLADA	Any	DAE
AutoCAD-2D	Up to DWG 2018(RealDWG 2021)	DAE
AutoCAD-3D	Up to AUtoCAD 2019	DWG, DXF
Creo-Pro/E	Pro/Engineer 19.0 to Creo9.0	ASM, NEU, PRT, XAS, XPR
FBX	ASCII:from 7100 to 7500, Binary:All	FBX
GL Transmission Format	Version 2.0 only	FBX
I-deas	Up to 13.x(NX 5), NX I-deas 6	MF1, ARC, UNV, PKG
IFC	IFC2xEditions 2,3 and 4	IFC, IFCZIP
IGES	5.1, 5.2, 5.3	IGS, IGES
JT	Up to v10.6	JT
Microstation DGN	7	DGN
NX-Unigraphics	V11 to V18, NX to NX12, NX1847 to NX2206	PRT
Parasolid	Up to 34.1	X_B, X_T, XMT, XMT_TXT
PDF	All Versions	PDF
PRC	All Versions	PRC
Revit	2015 to 2023	RVT, RFA
Rhino3D	From 4 to 7	3DM
Solid Edge	V19-20, ST-ST10, 2022	ASM, PAR, PWD, PSM
SolidWorks*	From 97 up to 2022	SLDASM, SLDPRT
STEP	AP 203 E1/E2, AP214, AP242	STP, STEP, STPZ
STEP/XML	Any	STPX, STPXZ
Stereo Lithography(STL)	All Versions	STL
U3D	ECMA-363	U3D
VDA-FS	Version 1.0 and 2.0	VDA
VRML	V1.0 and V2.0	WRL, VRML
Wavefront OBJ	Any	OBJ

* SolidWorks PMI reader is limited

Digital Manual can be produced and played in the environment connected to the server. Drawing Viewer and Action data are required for Digital Manual to operate normally.
There is no restriction on the size of the CAD file, but it is recommended to use a CAD file within 2 GB, and it requires an appropriate size of memory and GPU for the server in charge of format conversion and streaming.
The CAD drawing viewed on the screen only displays the rendering result, so the data itself cannot be leaked. However, the function to prevent photo taking or capture during a meeting is not provided, and a separate security company or specialized software is required.
The 3D eXcellence service supports 30 different types of CAD formats, including manufacturing and construction fields, and quickly visualizes large-capacity 3D data with high-performance, ultra-light streaming, making it easy to utilize 3D data in web and mobile environments.
Only users registered in Nexplant 3D eXcellence can attend, and only users who are included in the Design Meeting's attendance group can attend.
It can be linked through Rest API or other interface tools, and it can be easily connected to your existing business system. However, separate development for connection is required If you want integration service, please contact us using the contact information below.
- Customer Support Portal: https://support.samsungsds.com
- email: nexplant3d@samsung.com
When you select a CAD drawing from the 'Design Data' menu, you can check the Design Meeting history with that drawing.
After each Design Meeting is completed, you can manage the meeting results through the meeting minutes function.
It is also possible to edit the created meeting minutes, and the version of the revised history is managed.

For a 1GB CAD file, if the server specifications are appropriate, there may be differences depending on the content of the drawing, but the average loading performance is around 10 seconds.
It shows 30 FPS or more when zooming in/out, so you can use it lightly.
Regarding the usage environment, to explain further, 3D eXcellence supports two types of rendering.
1) CSR (Client Side Rendering)
: In case of using CSR environment where rendering is performed on a local PC, external GPU configuration and server 4Core, 8GB (Memory), 100G (Storage), RHEL 7.x or higher are recommended for the local PC.

2) SSR (Server Side Rendering)
: In the case of using SSR where rendering is performed on the server, we recommend server specifications of Core Memory 4Core 16g, Display GPUs (NVIDIA Geforce GTX/NVIDIA GRID GPUs) or higher.
If you have any additional questions, please contact 'Service Inquiry' in the customer support portal, or Please contact us using the contact information below and we will respond sincerely.
- Customer Support Portal: https://support.samsungsds.com
- email: nexplant3d@samsung.com

available format list, format, version, extensions
Format	Version	Extensions
3MF	1.2.3	3MF
ACIS	Up to 2021	SAT, SAB
IGES	5.1	IGS, IGES
FBX	7400, ASCLL or Binary	FBX
GLTF	2.0	GLTF, GLB
JT	8.1, 9.5, 10.0	JT
Parasolid	12.1	X_T
PRC	Latest	PRC
STEP	AP 203 E2, AP 214 E1, AP 242 E1	STP, STEP, STPZ
Strero Lithography	Any	STL
U3D	ECMA-363	U3D
VRML	1.0 and 2.0	VRML
Wavefront OBJ	Any	OBJ

1) FBX-DOM file are unsupported.
2) Our JT writer supports JT 8.1, 9.5 and 10.
3) Exporting tessellation data is only possible using the Parasolid bridge (not available on macOS).
4) Our STEP writer supports AP203, AP241, and AP242. STPZ export is only available in the AP242 format.

Digital Manual production service requires prior consultation. Please contact us using the contact information below.
- Customer Support Portal: https://support.samsungsds.com
- email: nexplant3d@samsung.com
